Bending Machine
Programmable CNC rebar bending machine with automatic feeding system. Designed for high-precision bending of rebar from 6mm to 50mm diameter. Supports both single and double bending operations.
6-50 mm
180°
7.5 kW
2,800 kg
Technical Data
| Parameter | Specification |
|---|---|
| Model | RB-40NC |
| Rebar Diameter Range | 6 - 50 mm |
| Max Bending Angle | 180° |
| Bending Speed | 45°/sec |
| Motor Power | 7.5 kW |
| Power Supply | 380V / 50Hz / 3-Phase |
| Control System | CNC Programmable (PLC) |
| Feeding System | Automatic Roller Feed |
| Dimensions (LxWxH) | 3,200 x 1,100 x 1,300 mm |
| Machine Weight | 2,800 kg |
| Certification | CE, ISO 9001 |
Highlights
Controller with memory for 200+ programs, digital angle and length settings.
Digital length measurement with automatic roller feed for consistent accuracy.
Supports both single and double bending operations for versatile rebar shaping.
Emergency stop, safety guard, and overload protection for operator safety.
Secure workpiece holding with hydraulic clamping system for precise bending.
Steel frame with anti-vibration mounts for stable, long-lasting operation.

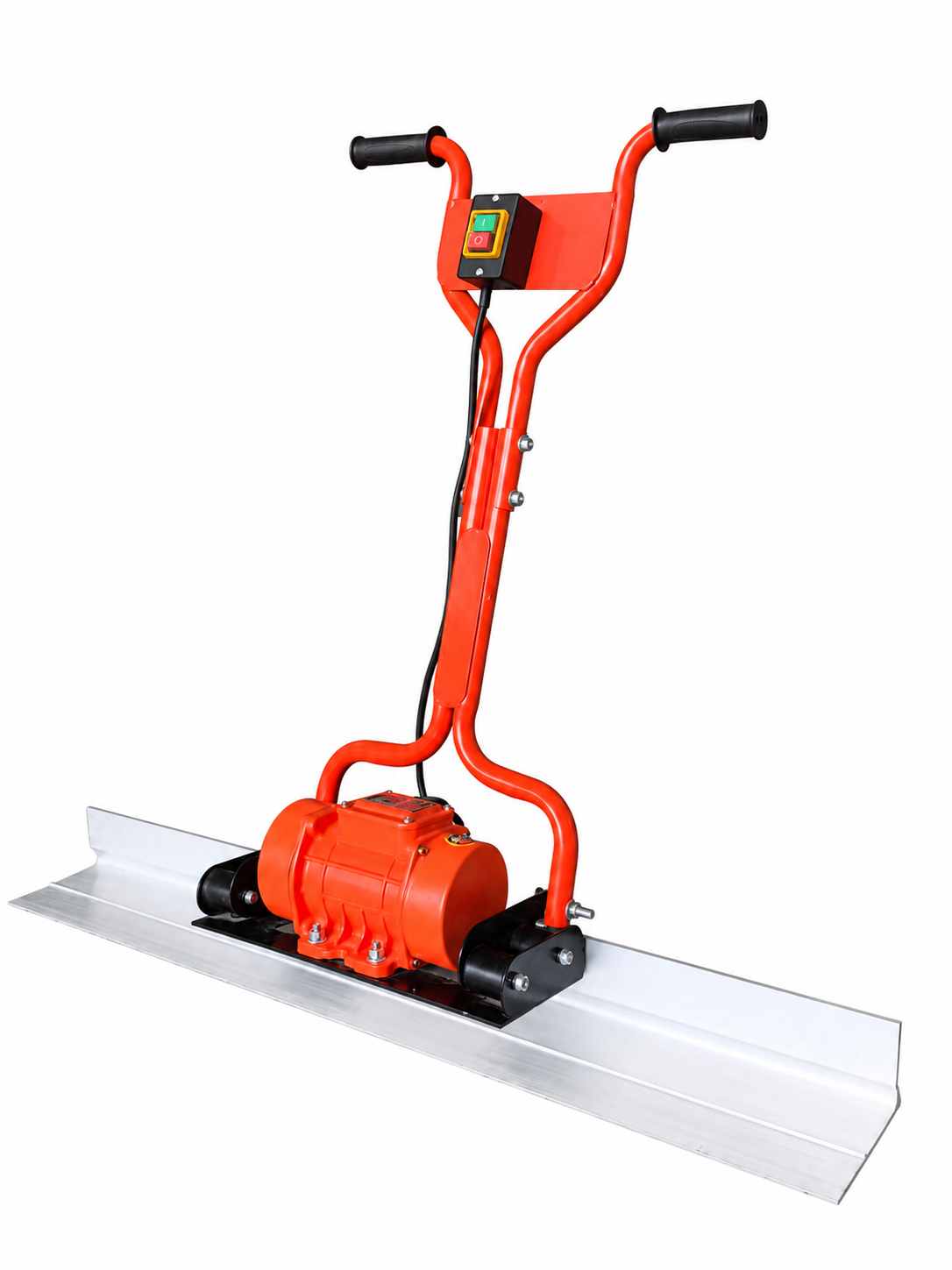

Demonstration
